1.What is the normal problem in bulk coffee bean level measurement?
Bulk coffee beans feature large-capacity stacking, heavy dust during loading and unloading, and irregular particle morphology, which impose stricter requirements on the anti-interference capability, accuracy and safety of level measurement instruments.
2, What the CIPPUS CRD-802 radar level meter can do in bulk coffee bean level measurement?

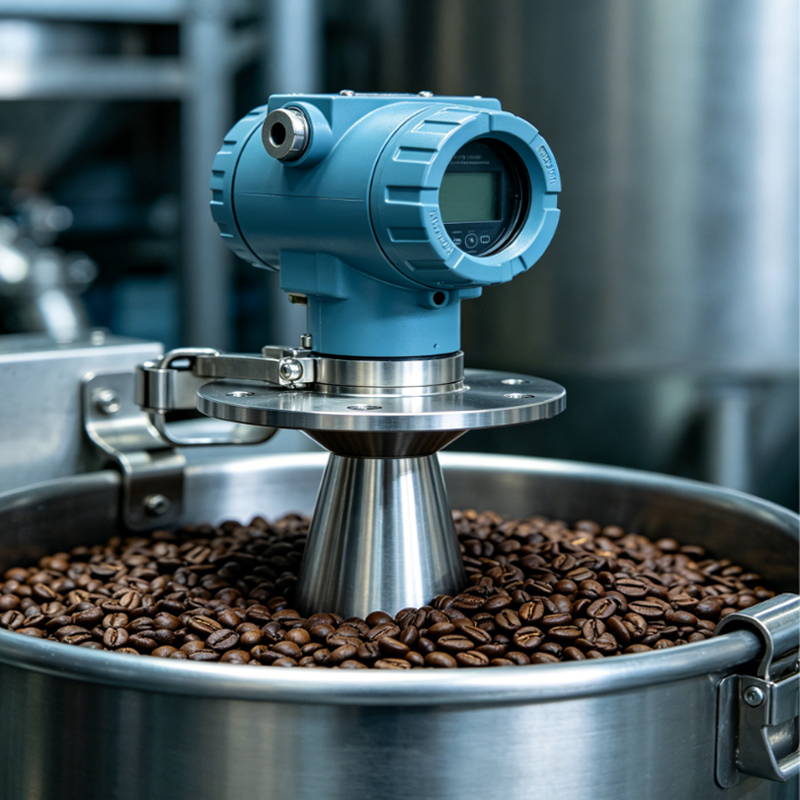

With non-contact measurement and strong environmental adaptability, CIPPUS model CRD-802 Radar Level Transmitter serves as the core device for bulk coffee bean level monitoring, covering the full workflow from raw material storage to finished product transfer.
2.1 Large Bulk Raw Material Silos
- Scenario features: Vertical steel/concrete silos with a diameter of 5–20 m and height of 10–30 m; bulk coffee beans can be stored in dozens of tons, requiring long-term inventory monitoring.
- Monitoring objectives: Real-time level feedback to prevent overflow (during filling) or empty silo (during discharge), and support raw material procurement planning (e.g., judging the need to replenish coffee beans).
2.2 Bulk Transfer Hoppers
- Scenario features: Transition hoppers (volume 5–20 m³) connecting raw material silos and roasting equipment; bulk coffee beans flow rapidly via conveyors/chutes, with frequent level fluctuations.
- Monitoring objectives: Dynamic level tracking to ensure continuous feeding to roasters (avoid idle running) and prevent hopper overload (bulk material clogging chutes).
2.3 Bulk Finished Product Transfer Silos
- Scenario features: Temporary storage silos (height 3–10 m) for roasted and cooled coffee beans; moisture absorption and caking must be avoided, and accurate discharge per order is required.
- Monitoring objectives: Precise discharge control (e.g., 500 kg per batch) to reduce product waste, and inventory monitoring to match order delivery schedules.
2.4 Bulk Blending Silos
- Scenario features: Silos for proportional blending of multiple coffee bean varieties (e.g., Arabica, Robusta); separate level monitoring for each bean type is needed.
- Monitoring objectives: Link level data with the blending system to precisely control dosing ratios and ensure consistent flavor.
3, What is the advantages of CRD-802 Radar Level Transmitter in bulk coffee bean level measurement?
The CRD-802 Radar Level Transmitter targets the pain points of bulk coffee bean monitoring with the following key strengths:
3.1 Strong Resistance to Bulk Dust Interference
Bulk coffee bean handling generates heavy dust (particle size 10–50 μm), which easily blocks signals of ultrasonic/laser devices and causes interruptions. Radar waves (especially 26 GHz/80 GHz high-frequency) penetrate dust layers with signal attenuation <5%, maintaining measurement accuracy (error ±0.1%).
3.2 Adapted to Irregular Bulk Particle Piling
Coffee beans are granular (2–10 mm), with a repose angle of 35°–45°, often forming cone-shaped piles or local depressions. The radar uses a false signal filtering algorithm to ignore surface irregularities and accurately detect the actual average level of bulk materials.
3.3 Non-contact Measurement to Avoid Contamination and Damage
Bulk coffee beans must meet food-grade hygiene standards, and grains are prone to breakage from friction. The CRD-802 antenna has no contact with materials, eliminating contamination (antenna available in 316L stainless steel/PTFE, FDA compliant) and particle jamming (no moving parts).
3.4 Tolerance to Temperature and Humidity Fluctuations
Raw material silos require 40%–60% humidity (to prevent caking); roasted beans reach 60–80 °C (needing cooling). The radar operates stably at –40 °C to 200 °C and 0%–95% RH (non-condensing), with no extra insulation or moisture protection needed.
Features:
Compared with conventional measurement methods, the CRD-802 radar level transmitter can specifically address the unique challenges in bulk material applications.
| Traditional Measurement Method | Core Pain Points in Bulk Scenarios | Radar Level Transmitter Solution |
| Manual measurement (scale/probe) | 1. High working at height risk for tall silos (10–30 m);2. Large reading error (±5%–10%) due to irregular material surfaces | 1. Remote real-time monitoring, no manual silo entry;2. Algorithm correction for irregular surfaces, error <±0.5% |
| Ultrasonic level transmitter | 1. Dust blocks sound waves, limited measuring range (<8 m);2. Severe signal drift from air turbulence during material flow | 1. Radar waves penetrate dust, range 0.1–80 m;2. Anti-turbulence design, 90% higher signal stability |
| Contact level switches (rotary paddle/fork) | 1. Only switch output (presence/absence), no continuous level measurement;2. High failure rate (30%/month) from particle jamming | 1. 4–20 mA/RS485 continuous signal for real-time level;2. No moving parts, failure rate <1%/year |
4. Key Application Guidelines for Bulk Scenarios
To ensure stable operation of the CRD-802 in bulk coffee bean monitoring, follow these selection and installation rules:
4.1 Model Selection for Bulk Storage Scale
- Large-range bulk silos (>10 m): 26 GHz low-frequency radar (beam angle 6°–12°, wide coverage for large-diameter silos).
- Small-range bulk hoppers (<5 m): 80 GHz high-frequency radar (beam angle <3°, strong anti-interference, avoids wall reflection).
4.2 Installation Away from Bulk Material Disturbance Zones
- Keep ≥1.5× the inlet diameter from bean inlets to prevent direct impact on the antenna.
- Prefer center mounting on silo tops; offset to unobstructed areas (≥0.5 m from obstacles) if mixers/chutes are present.
4.3 Material Selection for Food Safety and Wear Resistance
- Antenna material: PTFE (resists coffee oil, easy cleaning) or 316L stainless steel (wear-resistant, service life >5 years).
- Enclosure protection: IP67/IP68 rated for rain and dust on silo tops.
4.4 Maintenance Priorities for Bulk Scenarios
- Clean the antenna every 3 months (soft cloth for fine powder/oil to avoid signal attenuation).
- Check wiring terminals every 6 months (tighten and seal against vibration-induced loosening).
5.What's the benifits of CIPPUS CRD-802 radar level meter can bring for you?
The CRD-802 Radar Level Transmitter resolves core bulk-scenario challenges (dust interference, irregular piling, limited range) and delivers three core values:
1. Precise inventory management: Real-time bulk coffee bean inventory with error <0.5%, avoiding over-purchasing (capital tie-up) or shortages (production downtime).
2. Production automation: Level signals link to PLC systems for auto-filling/discharging (e.g., auto-replenish below 10% level), reducing manual intervention.
3. Safety and compliance: Non-contact design prevents material contamination (meets food hygiene standards) and eliminates working-at-height risks.
4. Wireless capability: The CRD-802 supports Wi-Fi, LoRa, LoRaWAN, 4G and other wireless modes, enabling unattended operation, flexible deployment and low maintenance costs. It perfectly fits coffee bean measuring systems (distributed silos, food-grade requirements, automated management) and solves pain points of wiring, expansion and maintenance in wired systems.
